KORKS with Wide Inlet Type For high concentration liquid with low fluidity
KS type is the MONAS with a wide inlet and a screw type coupling rod.
Even the liquids that are difficult to intake through pipe suction can be sucked with wide inlet and continuously transferred without pulsation by KS.

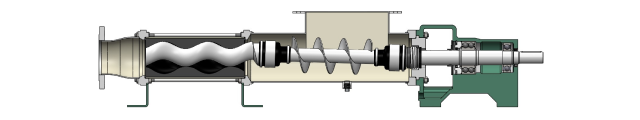

Bearing Block Type KS-B

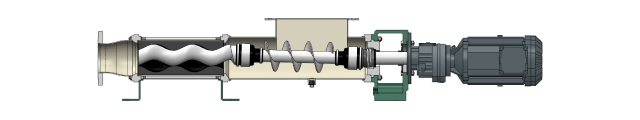

Mono Block Type KS-M
Features
- Quiet, pulseless, continuous flow
- Automatic control of the discharge volume freely
- Smooth transfer of cakes even with low moisture content
- Transfer liquids with bubbles, suspended solids and fibers.
- Pump with heating or cooling jacket are also available

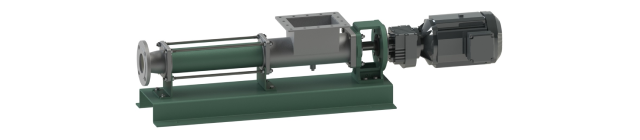

Monoblock KS-M in-line Type
Compact monoblock type with direct coupled between driver and pump

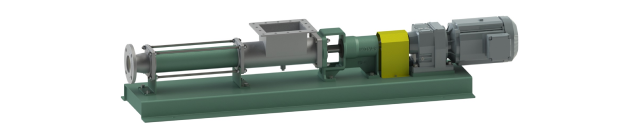

Bearingblock KS-B in-line Type
Bearing block type that can be used with various reduction motors

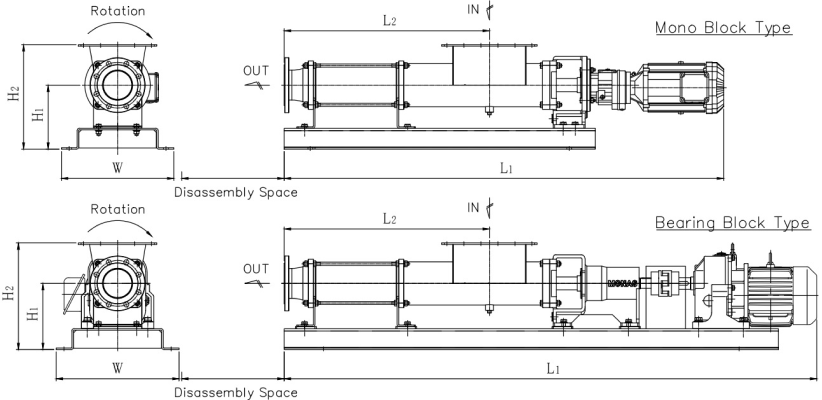

- Performance and dimensions
Performance and dimensions
Performance and dimensions of KS type
| Model | Connection (A) |
Dischare pressure (kgf/cm²) |
Flow rate (m³/hr) | Reduction ratio | Rotation (rpm) |
Power (kW) |
Dimensions (appr.) |
Disassembly Space | Wt (kg) |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mono Block Type | Bearing Block Type | |||||||||||||||||
| L1 | L2 | H1 | H2 | W | L1 | L2 | H1 | H2 | W | |||||||||
| KS20 | 32 | 4 | 0.6 | 5.0 | 350 | 0.75 | 993 | 365 | 180 | 270 | 225 | 1168 | 365 | 215 | 305 | 340 | 125 | 42 / 75 |
| 2KS20 | 32 | 8 | 0.6 | 5.0 | 350 | 0.75 | 1093 | 465 | 180 | 270 | 225 | 1268 | 465 | 215 | 305 | 340 | 225 | 45 / 77 |
| KS30 | 50 | 4 | 1.8 | 5.0 | 350 | 1.5 | 1246 | 501 | 195 | 300 | 265 | 1506 | 501 | 233 | 338 | 400 | 190 | 66 /120 |
| 2KS30 | 50 | 8 | 1.8 | 5.0 | 350 | 1.5 | 1400 | 651 | 195 | 300 | 265 | 1656 | 651 | 233 | 338 | 400 | 340 | 85 / 126 |
| KS40 | 65 | 4 | 4.3 | 5.0 | 350 | 2.2 | 1415 | 597 | 210 | 325 | 285 | 1769 | 597 | 252 | 367 | 440 | 250 | 91 / 170 |
| 2KS40 | 65 | 8 | 4.3 | 5.0 | 350 | 3.7 | 1624 | 797 | 210 | 325 | 285 | 1969 | 797 | 252 | 367 | 440 | 450 | 120 / 185 |
| KS50 | 80 | 4 | 6.6 | 5.0 | 350 | 3.7 | 1667 | 752 | 235 | 370 | 320 | 2017 | 752 | 252 | 387 | 440 | 300 | 134 / 211 |
| 2KS50 | 80 | 8 | 6.6 | 5.0 | 350 | 5.5 | 2004 | 992 | 235 | 370 | 320 | 2329 | 992 | 277 | 412 | 500 | 540 | 180 / 271 |
| KS60 | 100 | 4 | 14.0 | 5.0 | 350 | 5.5 | 1914 | 880 | 245 | 400 | 345 | 2271 | 880 | 261 | 416 | 470 | 370 | 196 / 292 |
| 2KS60 | 100 | 8 | 14.0 | 5.0 | 350 | 7.5 | 2232 | 1180 | 245 | 400 | 345 | 2571 | 1180 | 261 | 416 | 470 | 670 | 235 / 325 |
| KS80 | 125 | 4 | 29.0 | 5.0 | 350 | 7.5 | 2265 | 1135 | 290 | 470 | 420 | 2705 | 1135 | 350 | 530 | 480 | 490 | 328 / 483 |
| 2KS80 | 125 | 8 | 29.0 | 5.0 | 350 | 11 | 2826 | 1535 | 290 | 470 | 420 | 3220 | 1535 | 355 | 535 | 530 | 890 | 460 / 598 |
| KS100 | 150 | 4 | 45.5 | 7.3 | 240 | 15 | 2682 | 1325 | 330 | 540 | 540 | 3231 | 1325 | 405 | 615 | 560 | 610 | 564 / 778 |
| 2KS100 | 150 | 8 | 45.5 | 7.3 | 240 | 22 | 3203 | 1825 | 330 | 540 | 540 | 3758 | 1825 | 380 | 590 | 530 | 1110 | 675 / 797 |
- The above table is based on 350rpm. Please contact us for transfer of high-viscosity and high-concentration liquid.
