KD Basic Type

KD Series is the new advanced dispenser using the principle of mono pump.

Features

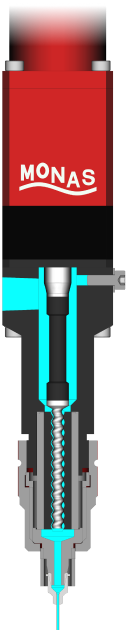

  • Pulsation-free metered dispensing using the micro eccentric screw pump
  • High-precision control of small flow rate freely
  • Constant discharge regardless of changes in viscosity
  • Clean dispensing without liquid drip at the tip of the nozzle with the suck-back function

Specification

  • Suction Pressure : 0 ~ 6 kg/cm², Max. Tightness Pressure : 2kg/cm²
  • Max. Discharge Pressure : 15 ~ 20 kg/cm²
  • 24V DC Geared Motor Driver
  • Discharge accuracy ±1%, Repeatability > 99%
  • Stator : FFKM or FKM
  • Rotor : STS316, Etc.
  • Seal : UHMW-PE
  • Casing : HD-POM or STS316, AL
  • O-rings : FFKM or FKM
  • Performance and dimensions
  • Robot System Application

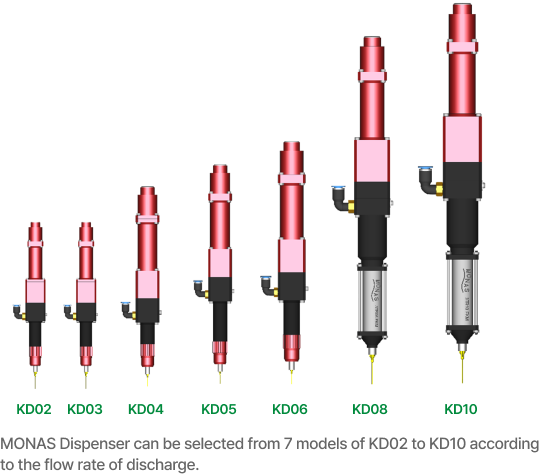

Performance and dimensions

Model KD02 KD03 KD04 KD05 KD06 KD08 KD10
Vloum flow(ml/min) 0.1~1.0 0.6~6.0 2~20 4~40 9~90 18~180 40~400
Appr. dosing volume(ml/rev) 0.012 0.06 0.17 0.38 0.78 1.8 3.6
Min dosing Quantity(ml) 0.001 0.005 0.014 0.032 0.065 0.15 0.3
Max pump speed(rpm) 90 90 110 110 110 105 110
Inlet /outlet PT 1/8”
/ Luer Lock　		 PT 1/8”　
/ Luer Lock		 PT 1/8”
/ Luer Lock		 PT 1/8”
/ Luer Lock		 PT 1/4”　
/ Luer Lock		 PT 3/8”
/ Luer Lock　		 PT 3/8”
/ Luer Lock
H x W x L (mm) 269.8 x 32mm 269.8 x 32mm 337.2 x 39mm 354.7 x 39mm 422.7 x 45mm 517.7 x 55mm 573.1 x 60mm
Weight 465g 465g 870g 890g 1.3kg 2.2kg 3.1kg

1Robot System Application

Operates in line with KD dispenser and robot system

The MONAS dispenser can be operated in line with the robot system.

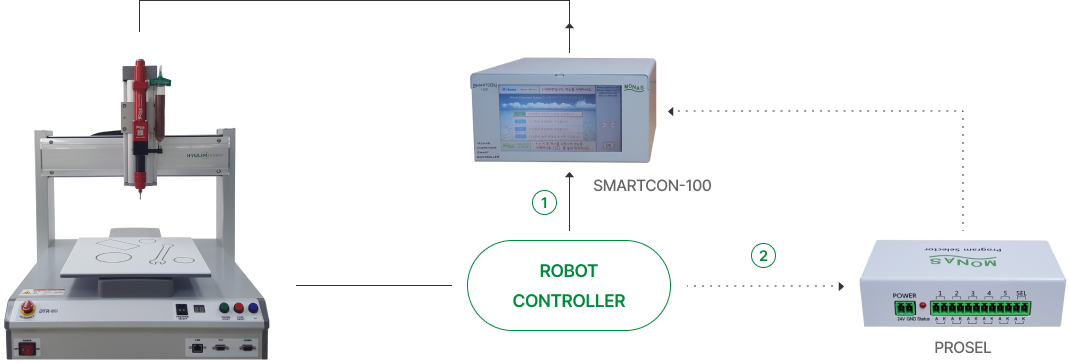

Below is an example of a dispenser system mounted on a desktop Cartesian robot.

  • When using the Dispenser with a robot system,
    • ① SMARTCON can be operated directly by the signal from the robot controller, or
    • ② When connected to SMARTCON through PROSEL, users can select a dispensing program written in advance and operate it conveniently.

2 Connection of Feeding Pump to Dispenser

For dispensing high-viscosity liquids, MONAS pump can be used to feed the coating liquid to the dispenser.

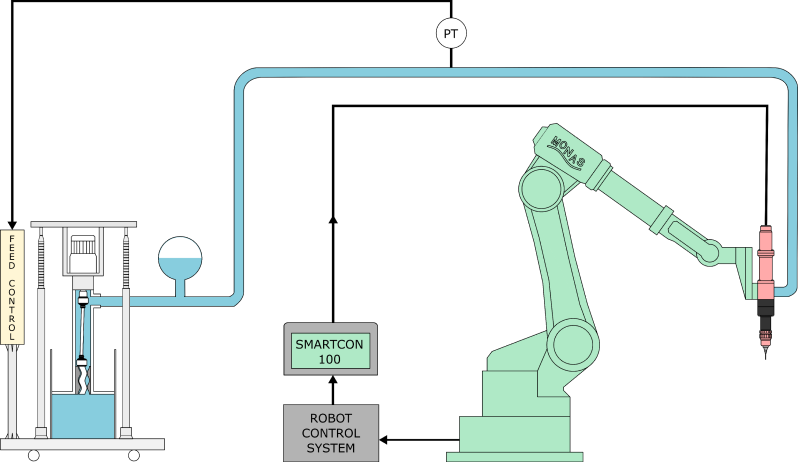

Below is an example of a system of MONAS-KVT pump and KD dispenser installed in the robot system.
