KF for Sanitary, Basic Type Pumps that can transport various sanitary fluids

KF type is the basic type for sanitary applications such as food, cosmetics, and pharmaceuticals

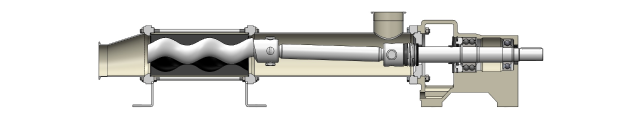

Bearing Block Type KF-B

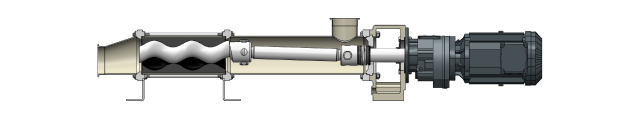

Mono Block Type KF-M

Features

  • Easy to clean by buffing and removing angled parts, corners, and concave parts of the inner surface in contact with the liquid
  • The structure is that the liquid does not stagnant
  • For frequent cleaning, the structure is easy to disassemble and assemble, and the ferrule clamp is standard for the pipe connection
  • According to the customer's request, it can also be manufactured to meet the CIP(Clean in Place) requirements

Materials

  • The standard material of the wetted part is STS304, and STS316 or more is available depending on the liquid to be transferred
  • Stator is made of various materials

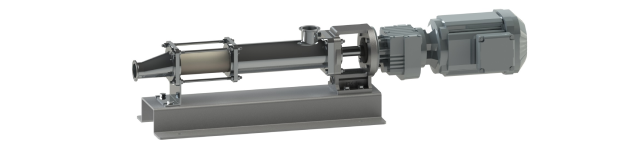

Monoblock KF-M in-line Type

Compact monoblock type with direct coupled between driver and pump

  • Performance and dimensions

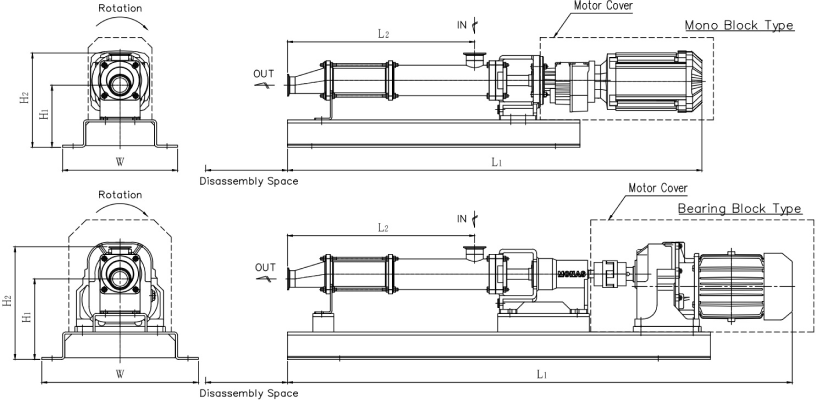

Performance and dimensions

Performance and dimensions of KF type

Model Connection
(A)		 Dischare pressure
(kgf/cm²)		 Flow rate (m³/hr) Reduction ratio Rotation
(rpm)		 Power
(kW)		 Dimensions
(appr.)		 Disassembly Space Wt
(kg)
Mono Block Type Bearing Block Type
L1 L2 H1 H2 W L1 L2 H1 H2 W
KF15 1 1/2S 4 0.12 10 175 0.4 773 324 172 260 310 973 324 177 265 350 100 35 / 52
2KF15 1 1/2S 8 0.12 10 175 0.4 853 404 172 260 310 1053 404 177 265 350 180 38 / 55
KF20 1 1/2S 4 0.24 10 175 0.75 934 374 177 265 330 1109 374 212 300 400 125 46 / 80
2KF20 1 1/2S 8 0.24 10 175 0.75 1034 474 177 265 330 1209 474 212 300 400 225 50 / 84
KF30 2S 4 1.00 10 175 1.5 1191 538 181 275 385 1450 538 219 313 470 190 68 / 126
2KF30 2S 8 1.00 10 175 1.5 1341 688 181 275 385 1600 688 219 313 470 340 75 / 133
KF40 2 1/2S 4 2.50 10 175 1.5 1345 675 196 300 385 1630 675 231 335 480 250 86 / 152
2KF40 2 1/2S 8 2.50 10 175 2.2 1602 875 196 300 415 1947 875 238 342 490 450 116 / 186
KF50 3S 4 4.50 10 175 2.2 1565 823 216 340 420 1945 823 233 357 490 300 128 / 204
2KF50 3S 8 4.50 10 175 3.7 1825 1063 216 340 420 2163 1063 233 357 490 540 174 / 230
KF60 4S 4 8.00 10 175 3.7 1769 983 226 380 425 2140 983 233 387 490 370 185 / 244
2KF60 4S 8 8.00 10 175 5.5 2176 1283 226 380 445 2511 1283 242 396 530 670 230 / 322
KF80 4S 4 18.00 10 175 5.5 2173 1240 248 435 485 2543 1240 248 435 550 490 285 / 389
2KF80 4S 8 18.00 10 175 7.5 2572 1640 248 435 485 2981 1640 248 435 550 890 344 / 461
  • The above table is based on 1/10 deceleration of 175rpm. Please contact us for lower concentration liquids than this
