KORKL Small capacity metering and dosing Pump Small model that transfer chemicals, etc. by metering
As a small-capacity metering pump, MONAS-KL type is optimal for pulsation-free, small-quantity and high-pressure transfer of high-viscosity and high-concentration liquids as well as general chemicals.
Since there is no pulsation, long-distance pipe transfer is possible without inertial resistance, and there is no need for pulsation reducing devices such as air chambers and back pressure valves.

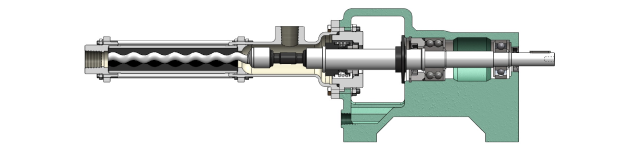

Bearing Block Type KL-B

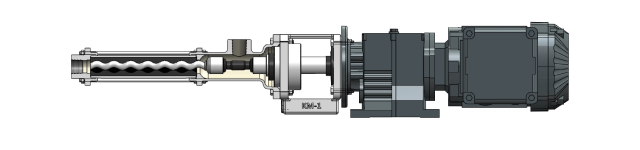

Mono Block Type KL-M
Features
- Remote operation becomes easy
- Precise flow rate control is possible
- The accurate transfer is possible with no pulsation or vortex, and without damage to chemicals
- The precise proportional feed of two liquids is possible
- Constant discharge is possible even if the liquid level of the suction side or the discharge pressure changes
- Regardless of the viscosity, the discharge volume is constant
- No noise and vibration
Application
- General chemicals
- NaOH, Methanol, Deformer, Deodorant
- Urea, Aluminium Sulfate, Emulsion Polymer, H2SO4, Poly Ferric Sulfate
- Polymer
Specifications of wetted parts of the pump for chemicals
| Chemical | Wet part | Material |
|---|---|---|
| Na OH Methanol Deformer Deodorant |
Pump Casing | STS304, SCS13, SCS14 |
| Rotor | STS304, STS316 | |
| Stator | EPDM | |
| Seal | Mechanical Seal | |
| Urea Aluminium Sulfate Emulsion Polymer H2SO4 Poly Ferric Sulfate |
Pump Casing | STS316, SCS14 |
| Rotor | STS316 | |
| Stator | Viton | |
| Seal | Mechanical Seal |

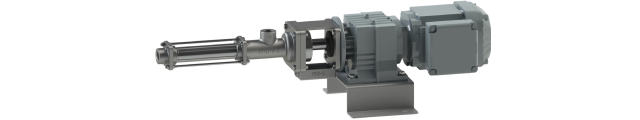

Monoblock KL-M in-line Type
Compact monoblock type with direct coupled between driver and pump
- Performance and dimensions

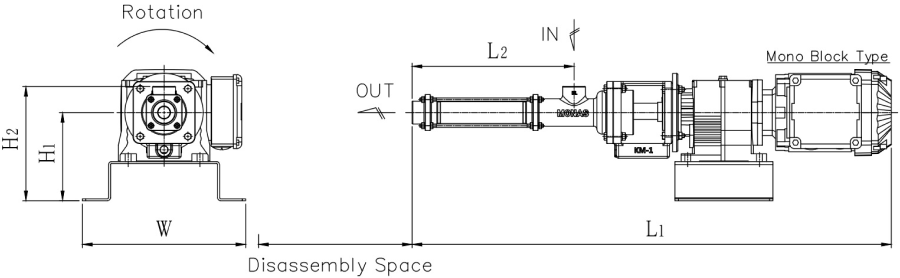

Performance and dimensions
KL type performance and dimensions - discharge pressure : 6kg/cm²
| Model | Connection (A) |
Dischare pressure (kgf/cm²) |
Flow rate (L/min) |
Reduction ratio | Rotation (rpm) |
Power (kW) |
Dimensions(appr.) | Disassembly Space |
Wt (kg) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L1 | L2 | H1 | H2 | W | |||||||||
| KL04 | PT 1/2" | 6 | 0.056 | 5 | 350 | 0.2 | 654 | 168 | 135 | 175 | 250 | 80 | 16 |
| KL06 | PT 1/2" | 6 | 0.227 | 5 | 350 | 0.4 | 674 | 188 | 135 | 175 | 250 | 100 | 16 |
| KL08 | PT 1/2" | 6 | 0.525 | 5 | 350 | 0.4 | 704 | 218 | 135 | 175 | 250 | 130 | 16.5 |
| KL10 | PT 1/2" | 6 | 1.031 | 5 | 350 | 0.4 | 734 | 248 | 135 | 175 | 250 | 160 | 17 |
- The above table is based on 1/5 deceleration of 350rpm. Please contact us for transfer of high-viscosity and high-concentration liquid
