KDD Duo-dispensers

2When mixing two types of liquid and injecting the mixed liquid, the KDD series, duo-dispenser type can be used.

Features

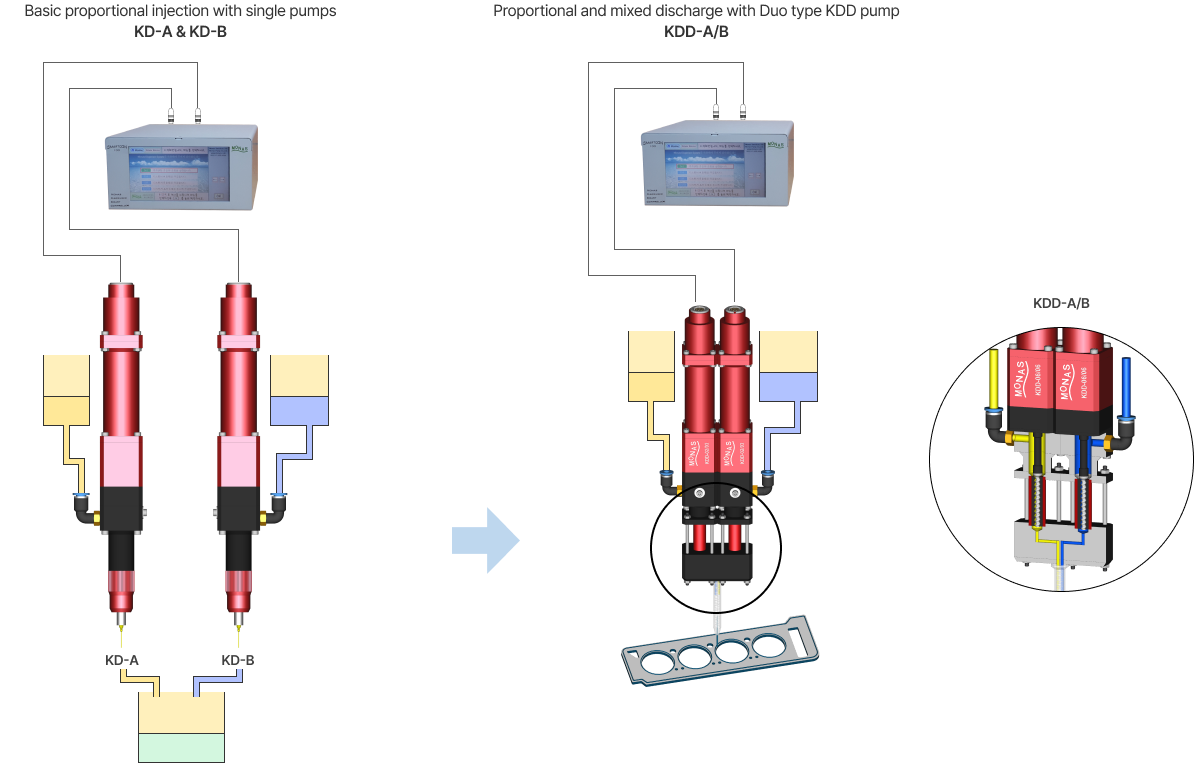

  • Proportional injection is possible using SMARTCON-100 and two one-component pumps, but if you want to inject and mix two liquids, install a Static Mixer to a two-component pump and control it with SMARTCON-100.
  • The mixing ratio and discharge volume can be easily adjusted by controlling the rotation of the two pumps freely by the controller.
  • Performance and dimensions

Performance and dimensions

Model KDD02/02 KDD02/03 KDD03/03 KDD04/04 KDD05/05 KDD06/06 KDD08/08 KDD10/10
Vloum flow(ml/min)
A / B		 0.1~1.0
/0.1~1.0		 0.1~1.0
/0.6~6.0		 0.6~6.0
/0.6~6.0		 2~20
/2~20		 4~40
/4~40		 9~90
/9~90		 18~180
/18~180		 40~400
/40~400
Appr. dosing volume(ml/rev) 0.012 0.012 / 0.06 0.17 0.38 1.8 3.6 3.6 3.6
Min dosing Quantity(ml) 0.001 0.001 / 0.005 0.014 0.032 0.15 0.3 0.3 0.3
Max pump speed(rpm) 90 90 / 110 110 110 105 110 110 110
Inlet /outlet PT 1/8”
/ Static Mixer		 PT 1/8”
/ Static Mixer		 PT 1/8”
/ Static Mixer		 PT 1/8”
/ Static Mixer		 PT 1/8”
/ Static Mixer　		 PT 1/4”
/ Static Mixer		 PT 3/8”
/ Static Mixer		 PT 3/8”
/ Static Mixer
H x W x L (mm) 269.8 x 32mm
x 2		 269.8 x 32mm
x 2		 269.8 x 32mm
x 2		 337.2 x 39mm
x 2		 354.7 x 39mm
x 2		 422.7 x 45mm
x 2		 517.7 x 55mm
x 2		 573.1 x 60mm
x 2
Weight 465g x 2 465g x 2 465g x 2 870g x 2 890g x 2 1.3kg x 2 2.2kg x 2 3.1kg x 2
  • General specifications and materials are the same as those of the one-component type.
  • If the mixing ratio is very large, we can combine large and small dispensers with different capacities in addition to the dispensers in the above table.
