KORKK/KKF Tank attached Type Transfer by attaching a pump to the tank
KK General Use, KKF Sanitary

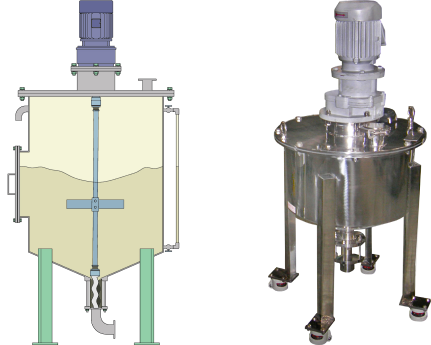

It is a type which enables storage and transfer of liquid by attaching a vertical mono pump to the tank.
If necessary, agitating blades can be attached to the coupling rod in various forms.
- Performance and dimensions
Performance and dimensions
Performance and dimensions of KK type
- The tanks are manufactured in various sizes and materials according to the customer's use
- Below is an example of the production size of the delivered KK15 model
| Model | KK15 |
|---|---|
| A | 750 |
| B | 1200 |
| C | 100 |
| D | ∅500 |
| Dischage | 2“ Ferrule |
| Model | Connection (A) |
Discharge Pressure (max.kgf/cm²) |
Flow rate (m³/hr) |
Power (kW) |
|---|---|---|---|---|
| KK15 | 20 | 4 | 0.06~0.3 | 0.4 |
| KK20 | 32 | 4 | 0.12~0.6 | 0.75 |
| KK30 | 50 | 4 | 0.4~2.0 | 1.5 |
| KK40 | 65 | 4 | 0.9~4.5 | 2.2 |
| KK50 | 80 | 4 | 1.8~9.0 | 2.2 |
| KK60 | 100 | 4 | 3.0~15.0 | 3.7 |
| KK69 | 100 | 4 | 5.0~25.0 | 5.5 |
| KK80 | 125 | 4 | 7.0~35.0 | 7.5 |
| KK100 | 150 | 4 | 12.0~60.0 | 15 |
